Billy Goat DL3702VE Debris Loader - Vanguard Engine

Billy Goat DL3702VE Debris Loader - Vanguard Engine

Billy Goat
SKU:
BIL~DL3702VE
|
UPC:
Does not Apply
$9,428.75
$9,925.00
(You save $496.25 )
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description
MODEL DL3702VE

DL37 Debris Loaders

Billy Goat commercial equipment

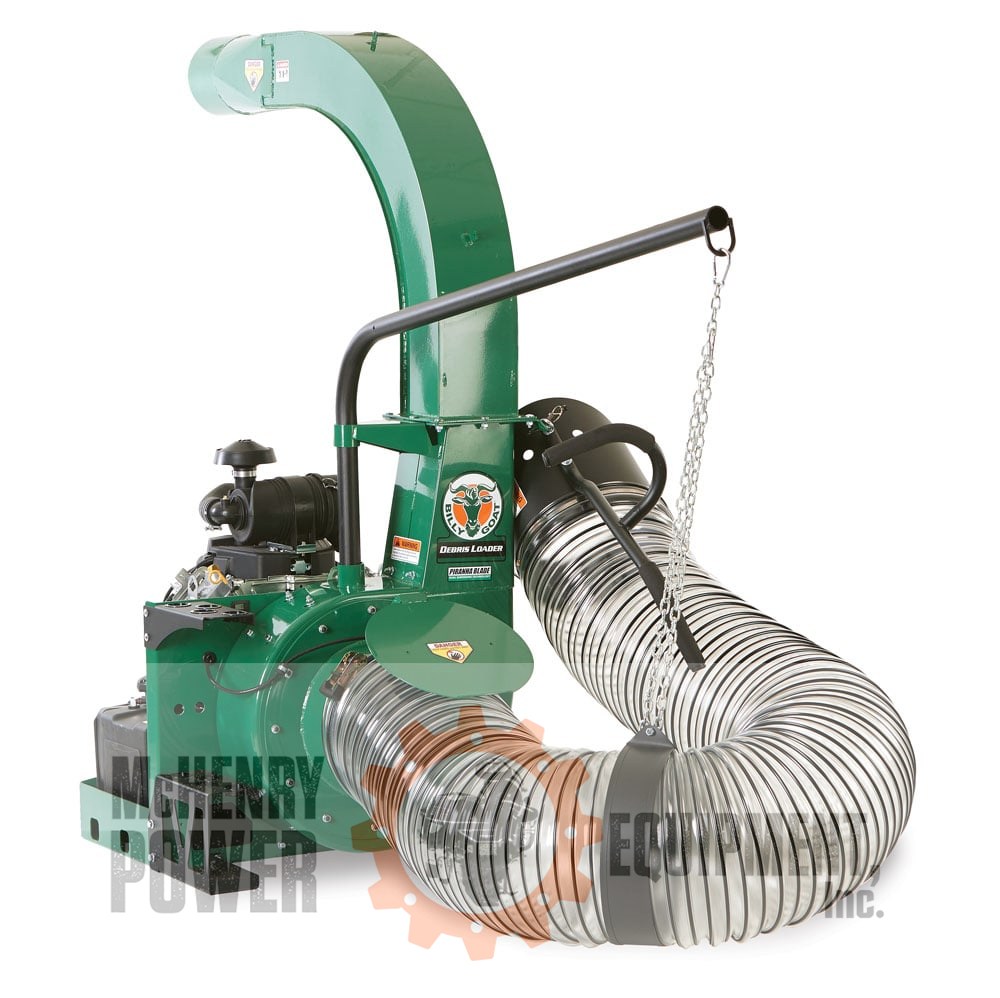

DL3702VE DL37 Debris Loaders

When commercial productivity counts, these units are our most popular contractor and municipal machines. The discharge chute offers rugged wear and increased life productivity. They feature a 37 HP Vanguard EFI engine coupled to our largest 20", 6-blade, armour-plated impeller with 18 cutting points and dual shredding Piranha technology for up to 12:1 reduction and 5,050 cfm of suction power. (DL3701VE pictured.)

Features

DL3702VE DUAL SHREDDING SYSTEM WITH PIRANHA BLADE

DUAL SHREDDING SYSTEM WITH PIRANHA BLADE

For extra shredding. Serrated blades with cutting points for maximum truck loading and debris reduction up to 12:1.

DL3702VE SQUARE DISCHARGE ELBOW

SQUARE DISCHARGE ELBOW

This all-new feature offers increased durability, longer life and ease of service

DL3702VE BUILT-IN RAKE HOLDER

BUILT-IN RAKE HOLDER

Secures the extra clean-up tools needed on the job.

DL3702VE DL WARRANTY

DL WARRANTY

DL29: limited 3-year engine; DL37: limited 3-year engine

Accessories

DL3702VE OPTIONAL CUSTOMFIT DISCHARGE HOSE KITS

OPTIONAL CUSTOMFIT DISCHARGE HOSE KITS

Extends discharge by 5' for customization of your truck or trailer.Urethane Hose Kit - Part #: 791107Flexible Metallic Hose Kit - Part #: 791106

Part number: 791107Flexible

DL3702VE CUSTOMFIT TRAILER

CUSTOMFIT TRAILER

Part #: 791152An ideal solution for most any crew wanting mobility and a smooth ride at highway speeds. Includes pre-wired light kit.

Part number: 791152An

DL3702VE OPTIONAL EXHAUST DEFLECTOR KIT

OPTIONAL EXHAUST DEFLECTOR KIT

Part #: 812295Deflects debris for most efficient loading.Installation Instructions >

Part number: 812295Deflects

DL3702VE CUSTOMFIT EXTENSION KIT

CUSTOMFIT EXTENSION KIT

Part #: 792119-SExtends discharge height. Extend by 12" - Part #: 792117-SExtend by 18" - Part #: 792113-SExtend by 24" - Part#: 792119-S

Part number: 792119-SExtends

DL3702VE OIL DRAIN HOSE KIT

OIL DRAIN HOSE KIT

Part #: 792609Offers ease of service for oil changes.

Part number: 792609Offers

DL3702VE ROTATIONAL KIT FOR SQUARE DISCHARGE ELBOW ONLY

ROTATIONAL KIT FOR SQUARE DISCHARGE ELBOW ONLY

Part #: 793600Provides full 360° rotation vs. fixed 90° standard position.

Part number: 793600Provides

Accessory notice: Accessories and attachments shown are sold separately unless explicitly stated as included.

Specifications

Engine Displacement (cc)993
Engine BrandVanguard EFI
Starter TypeElectric
DriveDirect
CFM5,050
Impeller6 Blades, 18 cutting points
Hose Dimensions14" x 10' (36 cm x 3 m)
Discharge Size7" square (17 cm)
Weight505 lbs (229 kg) - no fuel
Length60" (152 cm)
Width32.25" (82 cm)
Height74.875" (190 cm)
Operator's Manuals

Specifications and features are subject to change without notice.
