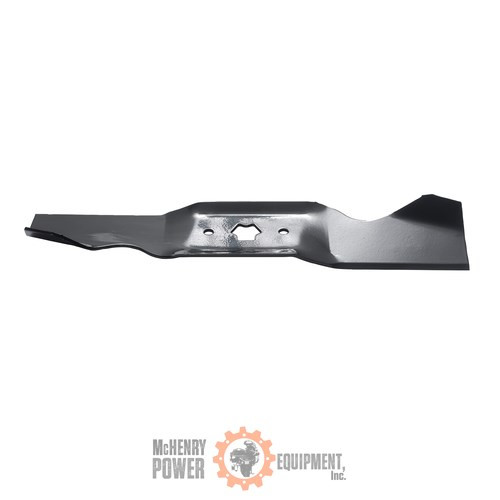

Genuine Oregon Mower Blade, 14-7/8"""" rpls MTD 742-0645 98-069
Oregon
$10.56
$17.23
(You save
$6.67
)
(No reviews yet)
Write a Review
Oregon
Genuine Oregon Mower Blade, 14-7/8"""" rpls MTD 742-0645 98-069
Details
- Center hole: 6 point star, 5/8"
- Requires 1, 98-069 blade and 2, 98-054 blades for 46" cut
- Center blade for 46" cut model series 600 and 800 built since 1997
- Enhanced hardening to keep the blade sharper and more durable
- Made to exact OEM specifications
- Replaces major brand: MTD
Blades
| Blade Width Measure near the center of the blade. | 3.00" |
| Blade Thickness Measure near the center of the blade. | 0.120" |
| Blade Length Measured diagonally from the corners of the blade | 14-7/8" |
| Center Hole Size Many blades will have a round hole in the center of the blade and you will need to know its diameter. Blade Length 5 or 7 Point Star Center holes may be 5 or 7 point star shaped. 5 point star on blade7 point star on blade Square or Rectangular The MTD built blades on many walk behind lawn mowers have a 'bow-tie' hole. In this case the Oregon replacement blade will have a rectangular center hole which will fit on the bow-tie pattern on the blade adapter. Square or Rectangular hole on blade MTD Blades The MTD® built blades (Bolens, Cub Cadet, Troy-bilt, White, Yard Machine, and Yardman) may have a 6 point star. Oregon replacement blades will have a 'Y' shaped center hole which will fit exactly on the 6 point star on the blade spindle. 6 point star for MTD blades The two sizes of the 6 point star. If your blade spindle has a bolt and lock washer that holds the blade to the machine you would use the 11/16" star or 'Y' blade. blade spindle with bolt and lock washer. If your blade is secured with a large flange nut then you would use the 5/8" star or 'Y' blade. blade spindle with large flange nut | 5/8" 6 pt. star |
| OffSet (Sometimes referred to as offset): If you set the blade on a table this is the distance the center of the blade is above the table top (if any) when the cutting edges are flat on the table | 5/16" |
| Air Lift Air lift is the distance the lift panel rises above the cutting edge. | 1-3/16" |
General
| Color | Black |
| Volume | 253.461 in3 |
| Product UOM | Each |
| Weight (with Packaging) | 1.348 Lb |
| Product Height | 0.12 |
| Product Length | 14-13/16" |
| Product Width | 3 |
| Packaged Length | 23" |
| Packaged Width | 3.8" |
| Packaged Height | 2.9" |
