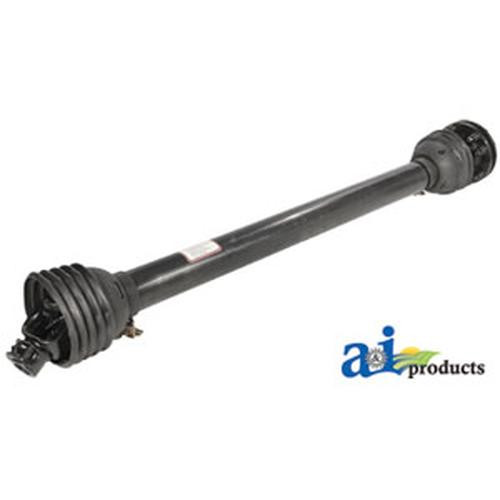

NEW Comp Driveline with 7' Friction Clutch Part# CS54816

Complete Driveline with 7" Friction Clutch. Minimum C-to-C Length: 48" (1210 mm), Maximum C-to-C Length: 74" (1880 mm), Total Collapsed Length: 58" (1470 mm). Tractor end: 1-3/8" - 6 Spline. Implement end.: 1-3/8" 21 Spline. FF1 FR. CL., Clutch Dia.: 7.09". Series: 100. Category 4 (47 hp). Fits Bondioli & Pavesi 100 Series. This is a complete replacement; components from original will not interchange.

It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient overlap of the drive tubes exists in all working positions without the possibility of bottoming out.

    C to C Max: 1880mm/ 74"

    C to C Min: 1210mm / 48"

    Category: 4 (47HP)

    Clutch Diameter: 7.09"

    Implement: 1 3/8"-21 spl. FF1 FR.CL.

    Series: 100

    Size: 5

    Total Collapsed Length: 1470mm / 58"

    Tractor: 1 3/8"-6
