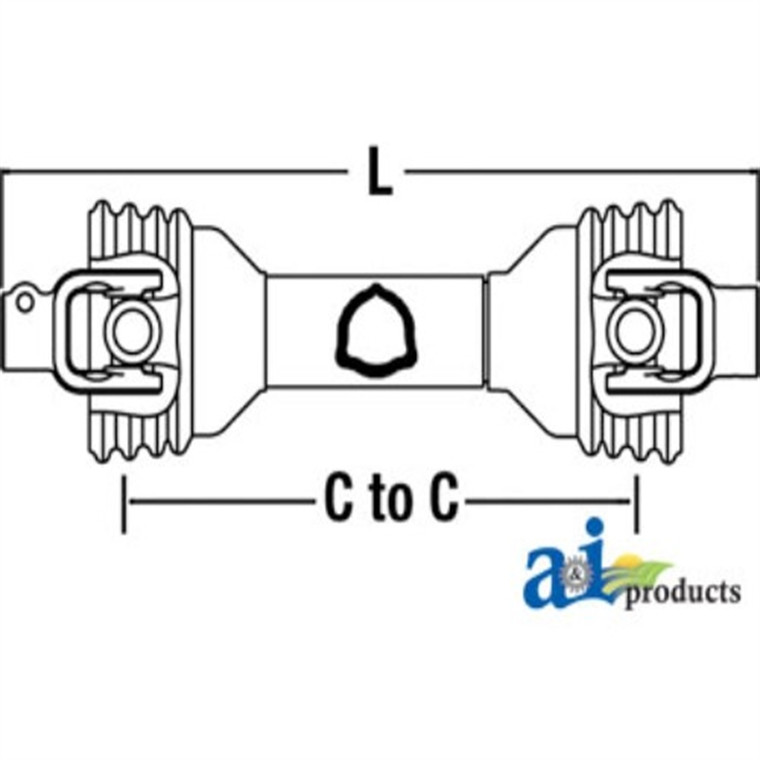

Complete Economy Driveline. Minimum C-to-C Length: 44" (1120 mm), Maximum C-to-C Length: 67" (1710 mm), Total Collapsed Length: 52" (1320 mm). Tractor end: 1-3/8" - 6 Spline. Implement end: 1" round bore, 1/4" KW. Series: 100. Category 2 (20 hp). Fits Bondioli & Pavesi 100 Series.
It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient overlap of the drive tubes exists in all working positions without the possibility of bottoming out.
C to C Max: 1710 mm/ 67"
C to C Min: 1120 mm/ 44"
Category: 2 (20HP)
Implement: 1" RB 1/4" KW
Includes: Set Screw
Series: 100
Size: 2
Total Collapsed Length: 1320 mm/ 52"
Tractor: 1 3/8" -6
