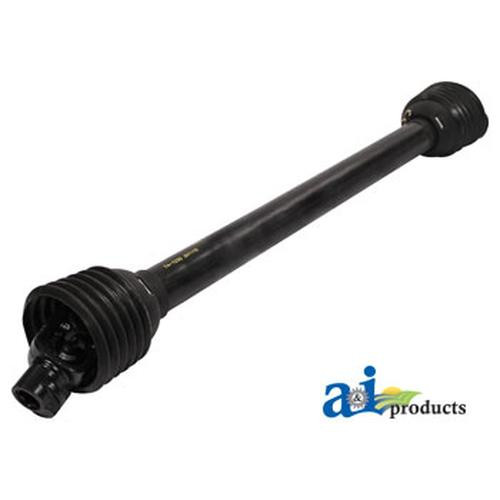

New 100 Series Economy Driveline. Driveline minimum C-to-C length: 41" (1035 mm), Maximum C-to-C length: 62" (1560 mm), Total collapsed length: 48" (1230 mm). Tractor end: 1-3/8" 6 spline, Implement end: 1-3/8" Round with 1/2" pin hole. Driveline rated as category 3 (35 hp), size 4. Driveline has 6 ft. lift / 3-pt. hitch. Fits King Kutter Finishing mowers and Rotary Cutters; Rhino and Woods Rotary Cutters.

It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient overlap of the drive tubes exists in all working positions without the possibility of bottoming out.

Use a grade 2 shear bolt (A-RCSBKT). The use of a harder grade bolt will void the warranty.

    C to C Max: 1560 mm/ 62"

    C to C Min: 1035 mm/ 41"

    Category: 3 (35HP)

    Implement: 1 3/8" RB 1/2" PH

    Replaces: 88642, 92950

    Series: 100

    Size: 4

    Total Collapsed Length: 1230 mm/ 48"

    Tractor: 1 3/8" -6

    Type: 6 ft. Lift / 3-pt. Hitch
